0.30 mm CTP Plates for Offset Printing

When it comes to offset printing, the 0.30 mm CTP plate is the industry standard. At Haomei Aluminum, we manufacture high-grade aluminum substrate for CTP plate production. Our 0.3 mm plates are designed to balance tensile strength, flexibility on the cylinder, and precise dot reproduction.

Thickness: 0.30 mm
Plate Types: Thermal, UV, Processless, Long Run
Applications: Commercial, Publishing, Packaging
Thermal Wavelength: 830 nm
UV Wavelength: 405 nm
Standard Shelf Life: 18 months

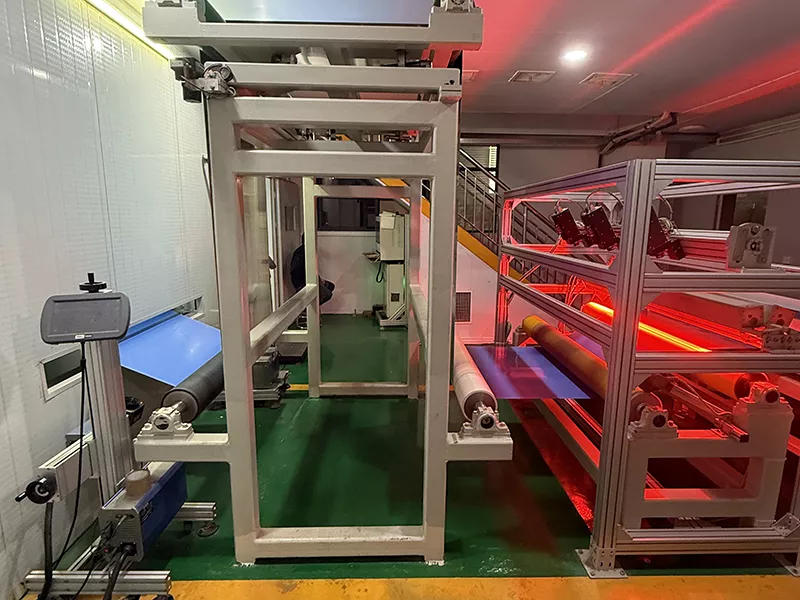

0.30 mm CTP plate production line at Haomei Aluminum factory

Whether you operate a mid-sized commercial print shop or a large packaging printing facility, our 0.30 mm CTP plate series provides the stability required for continuous high-speed press runs. We supply standard and custom-cut dimensions according to your CTP setter, press format, packaging requirements, and destination market.

Available 0.30 mm plate types: Positive thermal CTP plates, UV-CTP plates, processless thermal CTP plates, and long-run thermal CTP plates for demanding commercial and packaging applications.

0.30 mm CTP Plate Technical Specifications and Parameters

Parameter	Standard Working Range
Plate Thickness	0.30 mm
Unbaked Standard Plate Run Length	100, 000 to 150, 000 impressions
Baked Long Run Plate Run Length	Up to 1, 000, 000+ impressions
Thermal Exposure Energy	110–130 mJ/cm²
UV-CTP Exposure Energy	50–65 mJ/cm²
Development Time	25–30 seconds at 23°C ± 1°C
Recommended Storage Temperature	10°C–30°C
Recommended Storage Humidity	Below 65% RH
Shelf Life	Typically 18 months when stored in a dry, cool environment away from direct sunlight and heavy chemicals.

Why Choose a 0.30 mm CTP Plate?

The 0.30 mm thickness is a preferred choice for many medium- and large-format offset printing operations. It offers greater handling strength than thinner plates while remaining suitable for mainstream CTP equipment and standard press configurations.

Cylinder Fit: It fits approximately 95% of mainstream offset presses, including Heidelberg, Komori, KBA, and RMGT systems, without major cylinder packing adjustments.
Handling Durability: Compared with 0.15 mm plates, the 0.30 mm gauge is more resistant to kinking and bending during manual loading, transport, punching, and automated punch/bend processes.
Longer Press Life: A thicker aluminum base withstands higher pressure during long-run commercial, book, publication, and packaging jobs.
Dimensional Stability: The 0.30 mm aluminum base supports stable heat distribution during exposure and baking, helping reduce distortion risks during plate processing.

Additional Advantages

Available in conventional, UV, processless and long-run plate technologies.
Suitable for common plate sizes such as 605 × 745 mm and 770 × 1030 mm.
Well suited to large plate formats including 785 × 1030 mm and 790 × 1030 mm.
High-quality aluminum substrate supports stable flatness and imaging consistency.
Suitable for commercial printing, publication printing, carton and packaging applications.

Need Another Plate Thickness?

While 0.30 mm is the most frequently selected thickness for many commercial and large-format printing plants, other thicknesses may be more suitable for specific presses.

Compare 0.15 mm, 0.20 mm, 0.30 mm and other options in our CTP Plate Thickness Guide.

Types of 0.30 mm CTP Plates

Haomei Aluminum supplies a range of 0.30 mm CTP plates developed for different prepress systems and offset printing requirements. Depending on the imaging technology, press conditions, production volume and environmental goals, printers can select from thermal CTP plates, UV-CTP plates, processless thermal plates and long-run thermal plates.

All 0.30 mm CTP plates are manufactured with carefully controlled aluminum substrate quality to provide stable imaging performance, consistent plate handling and reliable printing results for commercial, packaging and publication printing applications.

Positive Thermal CTP Plate 0.30 mm

Positive Thermal CTP plates use infrared thermal laser imaging technology, commonly around 830 nm, to create high-quality plate images for modern computer-to-plate workflows. They are widely adopted by commercial printers requiring accurate dot reproduction, stable processing performance and consistent print quality.

Common Applications:

Commercial sheet-fed offset printing
Brochures, catalogs, books and magazines
Advertising materials and corporate printing
Medium to high-volume offset production

Key Advantages:

Excellent thermal imaging accuracy
Stable halftone reproduction and image quality
Reliable performance during plate processing
Compatible with mainstream offset printing inks

Learn More About Positive Thermal CTP Plates

UV-CTP Plate 0.30 mm

UV-CTP plates are produced for UV-sensitive CTP imaging systems and provide an economical option for printers operating UV plate-making equipment. They are commonly used where stable plate output and cost-effective offset production are important considerations.

Common Applications:

Offset printing plants using UV-CTP equipment
Commercial and regional printing companies
Labels and specialty printing jobs
General-purpose offset applications

Key Advantages:

Optimized for UV laser imaging systems
Clear imaging contrast after processing
Good ink and fountain solution balance
Available in standard and customized sizes

View UV-CTP Plate Specifications

Processless Thermal CTP Plate 0.30 mm

Processless Thermal CTP plates simplify the traditional plate-making workflow by eliminating the developer processing step. After thermal imaging, the plate can be mounted directly onto the press, reducing chemical usage and improving prepress efficiency.

Common Applications:

Printing companies looking to simplify prepress operations
Environmentally focused printing facilities
Businesses reducing processor maintenance costs
Commercial printers with stable production conditions

Key Advantages:

No conventional chemical developing process required
Lower chemical consumption and waste generation
Reduced prepress operation steps
Cleaner and more efficient plate production workflow

Explore Processless Thermal CTP Plates

Long Run Thermal CTP Plate 0.30 mm

Long Run Thermal CTP plates are designed for printing operations requiring extended press durability and fewer plate replacements. With enhanced coating performance, they are suitable for demanding commercial, packaging and high-volume offset printing environments.

Common Applications:

High-volume commercial printing production
Packaging and folding carton printing
Books, magazines and publication printing
Large-format offset press operations

Key Advantages:

Improved coating durability for longer press runs
Strong resistance to abrasion during printing
Reduced plate replacement frequency
Suitable for demanding production environments

Haomei Aluminum 0.30 mm CTP Plate Size Chart

As a CTP plate manufacturer, Haomei Aluminum can slit and cut 0.30 mm plates to custom dimensions. The following sizes are commonly requested for commercial and packaging offset printing applications.

High-Frequency 0.30 mm CTP Plate Specifications
Plate Size (mm)	Corresponding Application and Press Format
605 × 745	Medium-to-small format offset printing and standard commercial CTP prepress.
770 × 1030	Folio and half-sheet presses, including Heidelberg Speedmaster applications and large commercial print shops.
785 × 1030	Large-format packaging and commercial offset printing.
790 × 1030	Standard large-format CTP setter requirements.

Specific Machine Sizes
Plate Size (mm)	Corresponding Application and Press Format
550 × 650	Small commercial printing, label printing, and regional print shops.
660 × 745	Medium-format offset printing machines.
750 × 840	Specific custom press requirements.
800 × 1030	Large-format offset presses.
795 × 1050 / 795 × 1060	Oversized commercial offset printing applications.
770 × 1300 / 800 × 1300	Full-sheet printing, heavy packaging, and large-scale industrial printing facilities.

Custom 0.30 mm CTP Plate Sizes Available

In addition to the listed specifications, Haomei Aluminum can supply customized plate dimensions according to your CTP machine, offset press model and production requirements.

For custom dimensions, please provide your required plate width, plate length, plate thickness, plate type, CTP setter model, and order quantity. Our technical team can confirm production feasibility and packaging quantity before quotation.

Please Provide These Details for a Quote

Plate type: thermal, UV, processless or long-run
Plate thickness: 0.30 mm
Required width × length in millimeters
CTP machine brand, model and laser type
Offset press model, ink type and expected print run
Quantity, destination country or port

Contact Haomei for Custom CTP Plate Sizes

Suitable Printing Machines and Applications

Typical Printing Applications

Commercial brochures and catalogs
Books, magazines and manuals
Corporate stationery
Marketing materials
Packaging cartons
Folding boxes and paper bags
Posters and promotional materials
Publication printing
Large-format sheet-fed offset printing
Regional and trade print production

CTP Equipment Compatibility

0.30 mm CTP plates can be supplied for compatible thermal or UV CTP systems from major CTP equipment manufacturers. Final compatibility depends on laser wavelength, plate sensitivity, processor settings and press conditions.

Before ordering, please confirm:

Your CTP machine type and laser wavelength
Processor and developer information, if applicable
Plate size and punch/bend requirements
Ink type: conventional, UV or hybrid
Expected print run and printing application

0.30 mm CTP Plate Packaging for Export

Haomei Aluminum uses seaworthy packaging for 0.30 mm CTP plates to reduce the risk of moisture exposure, oxidation, edge damage, and pallet movement during international shipment.

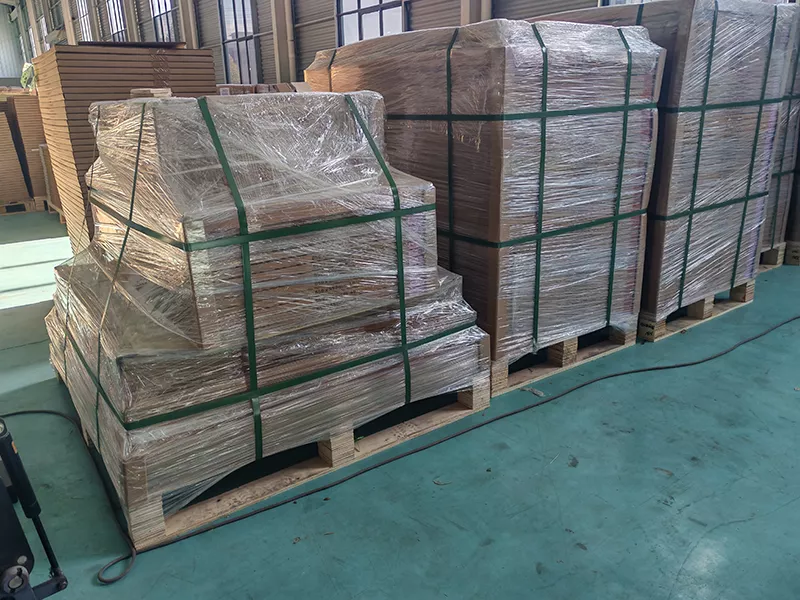

0.30 mm CTP plate packaging on wooden pallets for ocean shipment

0.30 mm CTP plate packaging: cartons secured on wooden pallets and protected for sea freight.

Standard packing quantity: typically 50 plates per box for 0.30 mm plates.
Comparison reference: 0.15 mm CTP plates are commonly packed at 100 plates per box.
Individual boxes are protected and strapped securely on export wooden pallets.
Pallets are wrapped with waterproof materials for ocean freight transportation.
Customized packaging, private label cartons, and distributor packing requirements can be discussed before production.

How to Select the Right 0.30 mm CTP Plate

The correct plate selection is not determined by thickness alone. Your CTP machine, imaging technology, press conditions, ink system, expected run length and environmental requirements should all be considered.

Choose Positive Thermal

For stable commercial offset printing
When using thermal CTP equipment
For accurate dots and high image quality
For standard developer-processing workflow

Choose UV-CTP

For compatibility with UV-CTP equipment
For conventional UV exposure workflows
For suitable commercial printing runs
For cost-efficient production requirements

Choose Processless

To reduce processor maintenance
To reduce developer use and wastewater
For a simplified prepress workflow
For fewer processing steps before press

Choose Long Run

For higher printing durability
For long production runs
For packaging and high-volume printing
For more demanding press conditions

Not Sure Which 0.30 mm CTP Plate Is Suitable?

Send Haomei Aluminum your CTP machine model, plate size, printing application, ink type and target print run. Our technical team will recommend a suitable 0.30 mm CTP plate solution for your production workflow.

Talk to Our Technical Team

Why Buy 0.30 mm CTP Plates from Haomei Aluminum?

Haomei Aluminum focuses on aluminum processing and printing plate solutions for international customers. We understand that stable CTP plates are essential for reducing prepress waste, controlling downtime and maintaining consistent print quality.

Our Supply Advantages

Manufacturer-based supply with stable production control.
Thermal, UV, processless and long-run plate solutions.
Common export sizes and customized cutting options.
Quality-controlled aluminum substrate and finished plate production.
Export-ready packaging designed for long-distance transportation.
Technical support for plate selection and application matching.
Support for distributors, importers and printing groups.

FAQ – 0.30 mm CTP Plate

What is a 0.30 mm CTP plate?

A 0.30 mm CTP plate is an aluminum offset printing plate with a thickness of 0.30 mm. It is widely used in commercial, packaging and large-format offset printing because it provides good plate strength, stable registration and broad compatibility with different printing equipment.

Is 0.30 mm the same as 0.3 mm?

Yes. 0.30 mm and 0.3 mm refer to the same aluminum plate thickness. Both expressions are commonly used in CTP plate specifications, product searches and supplier quotations.

What is the most common 0.30 mm CTP plate size?

Commonly requested 0.30 mm CTP plate sizes include 605 × 745 mm, 770 × 1030 mm, 785 × 1030 mm and 790 × 1030 mm. The suitable size depends on your CTP plate setter model and offset printing press requirements.

Can Haomei Aluminum produce custom 0.30 mm CTP plate sizes?

Yes. Haomei Aluminum can supply customized 0.30 mm CTP plate dimensions according to your CTP machine, press model and cutting requirements. Please provide the plate width, length, plate type and order quantity when making an inquiry.

Which is better: thermal CTP plate or UV-CTP plate?

The best choice depends on your existing CTP equipment. Thermal CTP plates are designed for thermal laser imaging systems, while UV-CTP plates are designed for UV exposure systems. The CTP machine type is the key factor when selecting the correct plate.

Can 0.30 mm CTP plates be used for packaging printing?

Yes. A 0.30 mm long-run thermal CTP plate is commonly used for packaging, folding carton and high-volume offset printing applications because it offers excellent durability under demanding production conditions.

How many impressions can a 0.30 mm CTP plate print?

The print run depends on the plate type, ink, fountain solution, paper quality, press condition, image coverage and baking process. Long-run CTP plates usually provide higher durability than standard commercial grades. Haomei Aluminum can recommend a suitable plate type based on your required print volume.

How should 0.30 mm CTP plates be stored?

Store 0.30 mm CTP plates in their original packaging in a cool, dry and light-protected environment. Avoid direct sunlight, excessive heat, moisture, scratches and bending during storage and handling.
